Features

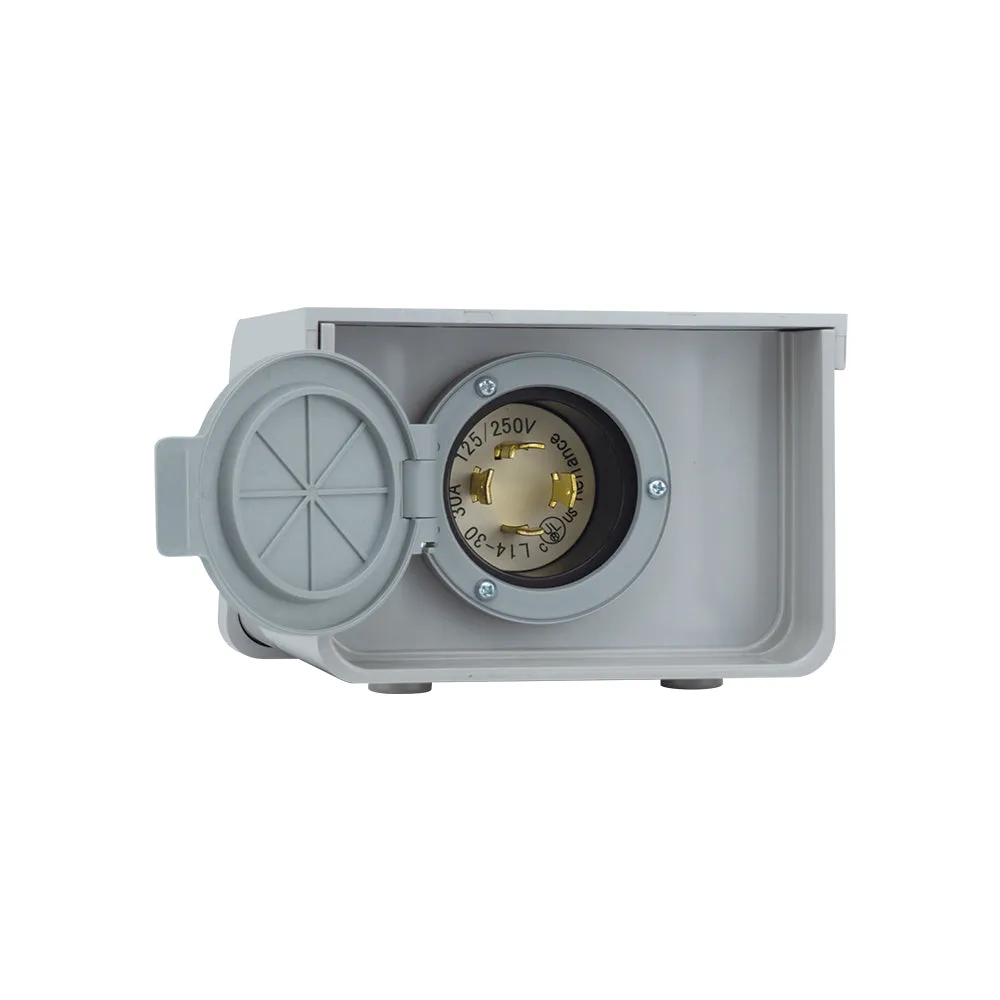

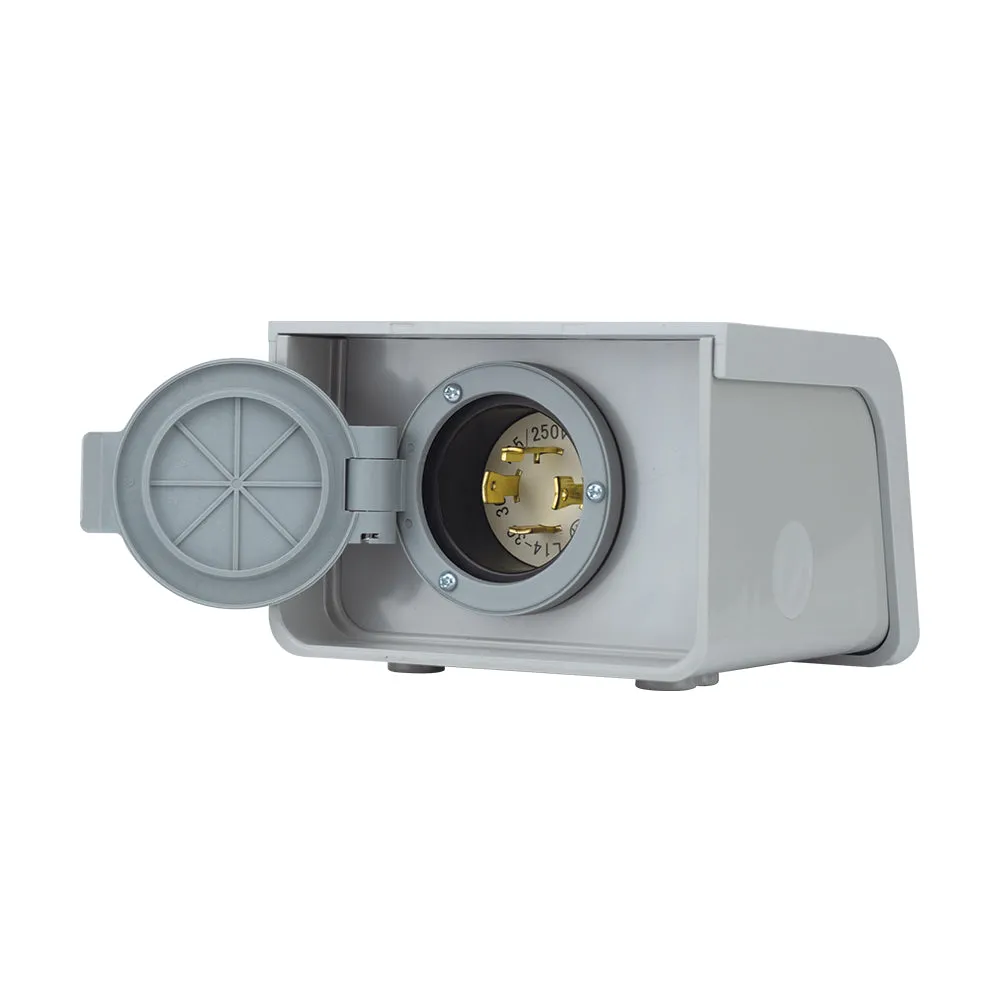

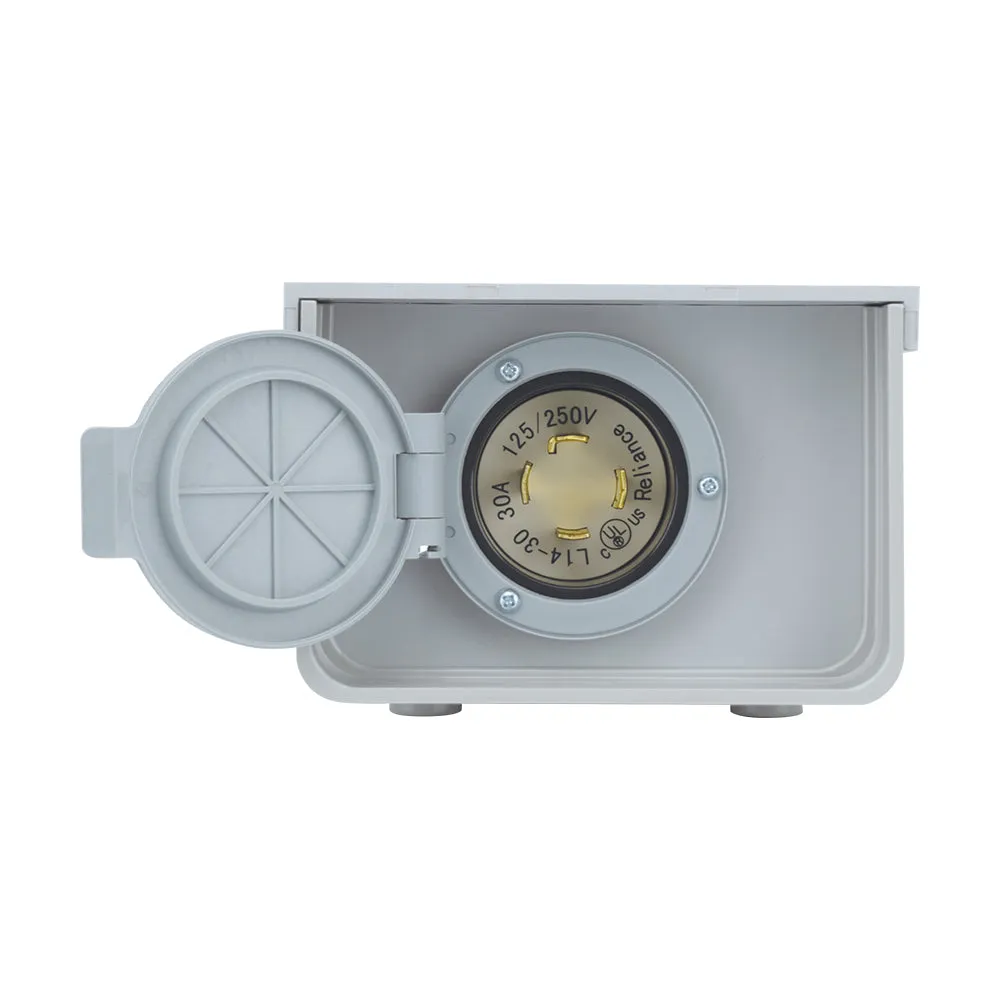

- The rain tight NEMA 3R PBN-Series steel power inlet box is designed for use with Pro/Tran transfer switches, Panel/Link transfer panels and generator-ready load centers.

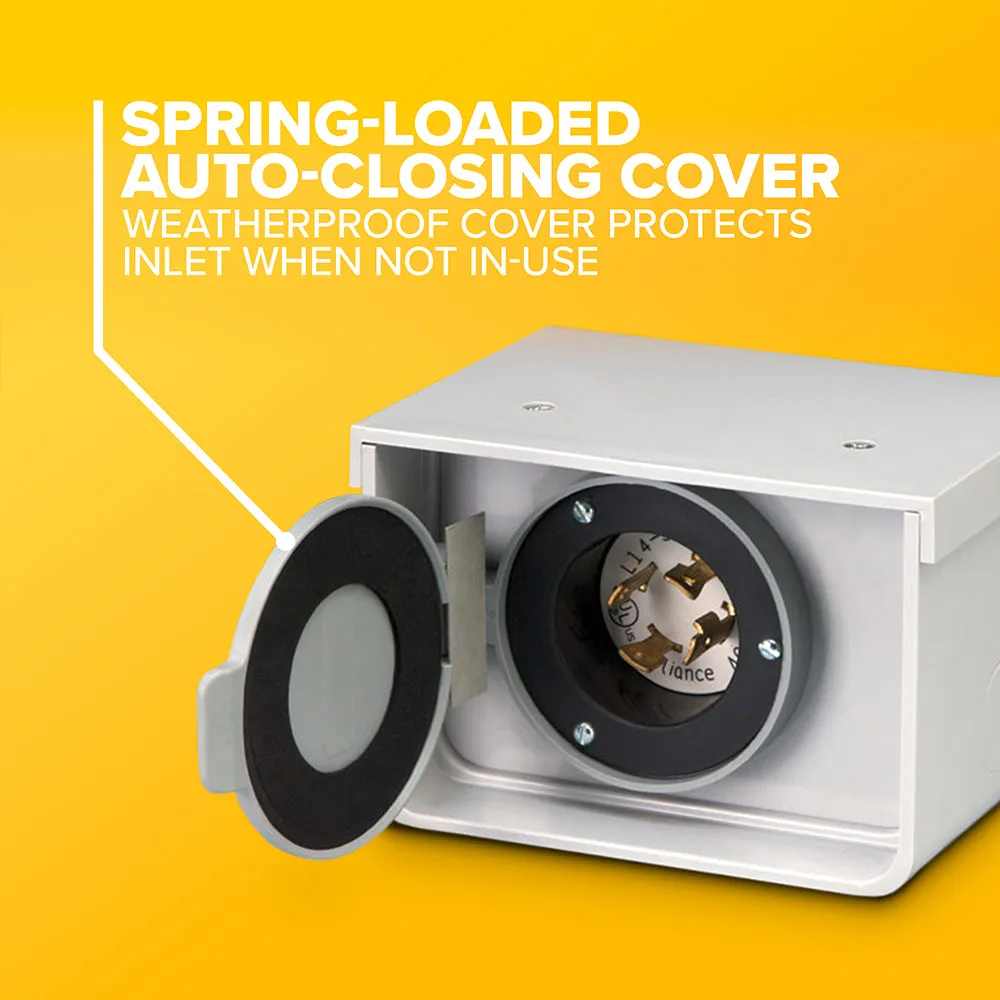

- The front entry inlet has a weatherproof spring cover which closes when not in use to protect the inlet from the elements.
- It is designed to be installed outdoors in an open area where the generator is being used to avoid carbon monoxide hazard.
What's in The Box
- PBN30 Transfer Switch Inlet Box
- Owner's Manual
Warranty
- 5 Year Limited Manufacturer Warranty
- 30-Day Satisfaction Guaranteed
Specifications
| SKU | PBN30 |
| Model Description | Non-metallic Power Inlet Box |
| MAX. Generator Running Watts | 7500 |
| MAX. Generator Input | 30A at 125/250VAC |
| MAX. Single-Pole Circuits | 6 |
| Configuration | L14-30 |
| Cabinet Type, NEMA | Outdoor, NEMA 3R |
| Dimensions H x W x D [inches] | 6.25 x 6.25 x 4.25 |
