Technical data
| battery platform | 36-V battery platform |
| area performance (m²/h) | 12 - 18 |
| fresh/dirty water tank (l) | 9 / 7 |
| air volume (l/s) | 57 |
| vacuum (kPa) | 15 |
| spray volume (l/min) | 0.5 |
| spray pressure (MPa) | 0.16 - 0.22 |
| Turbine power (W) | 550 |
| Pump power (W) | 4 |
| input power (W) | 575 |
| sound pressure level (dB(A)) | 70 |
| Nominal diameter accessories ( ) | DN 32 |
| Number of batteries required (pieces) | 1 |
| Running time per battery charge (min) | 35 (7.5 Ah) / 27 (6.0 Ah) |
| Battery charging time with quick charger 80% / 100% (min) | 58 / 81 |
| charging current (A) | 6 |
| charger power supply (V/ Hz ) | 100 - 240 / 50 - 60 |
| Color | anthracite |
| Weight without accessories (kg) | 7.6 |
| Weight including packaging (kg) | 11.2 |
| Dimensions (L × W × H) (mm) | 540 x 332 x 460 |

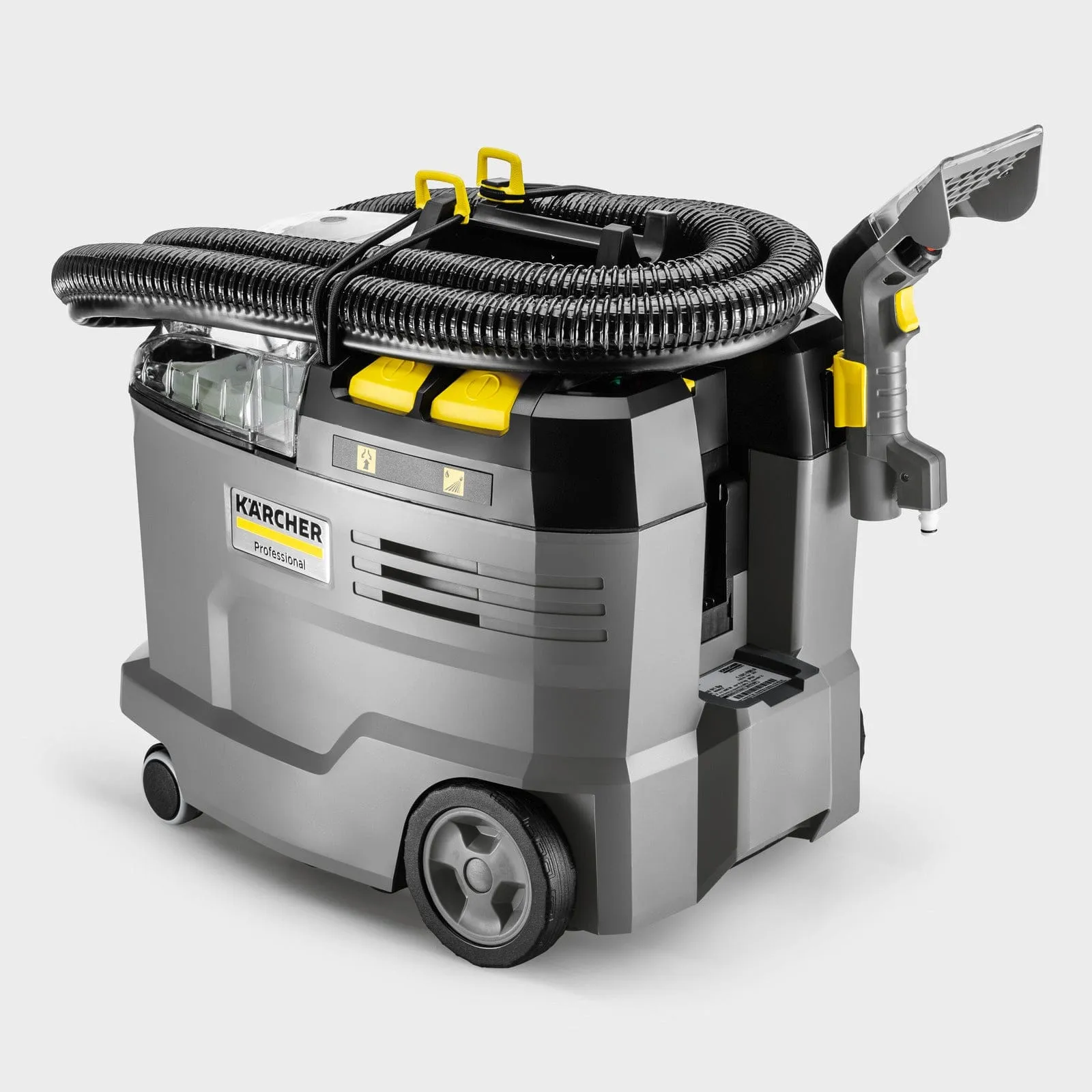

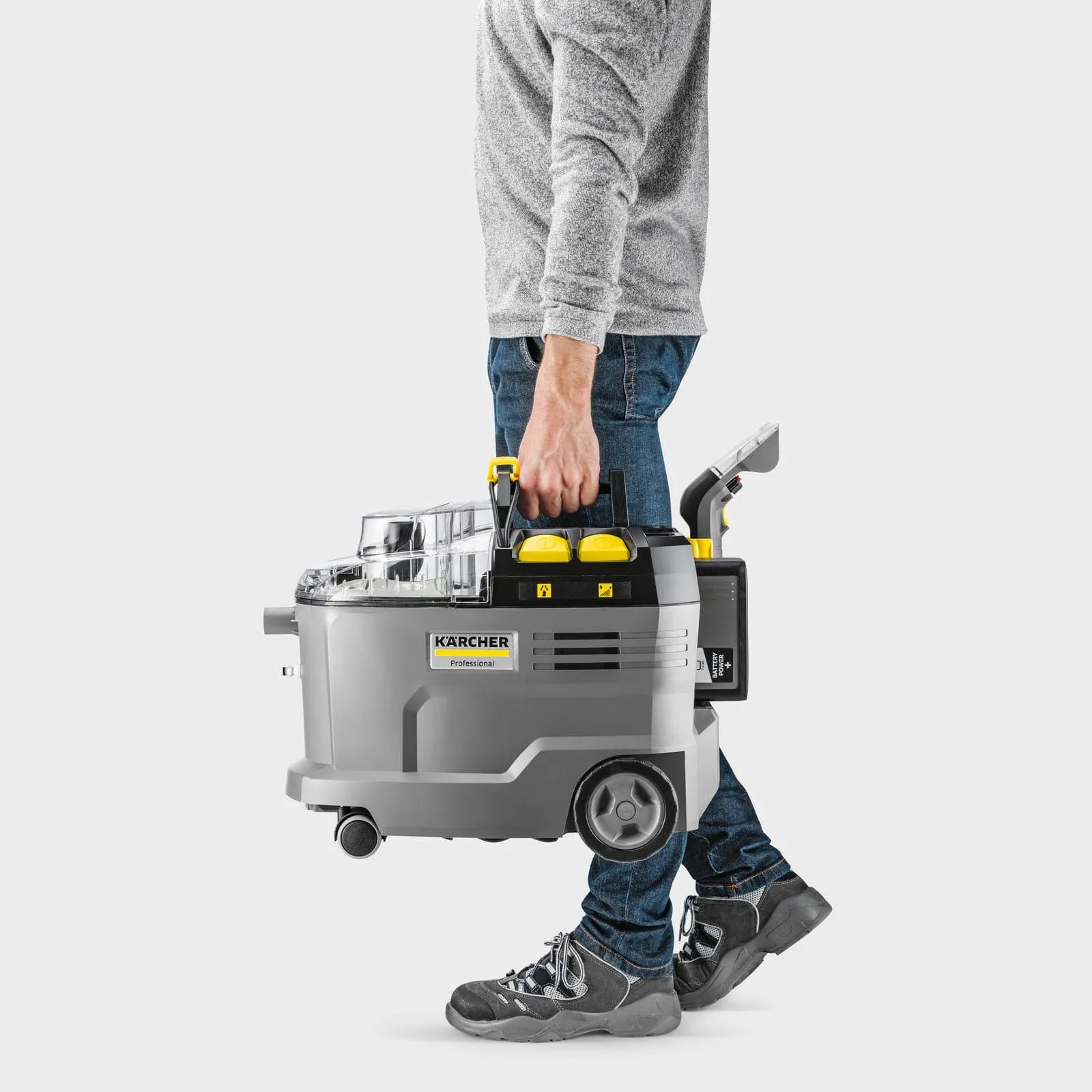

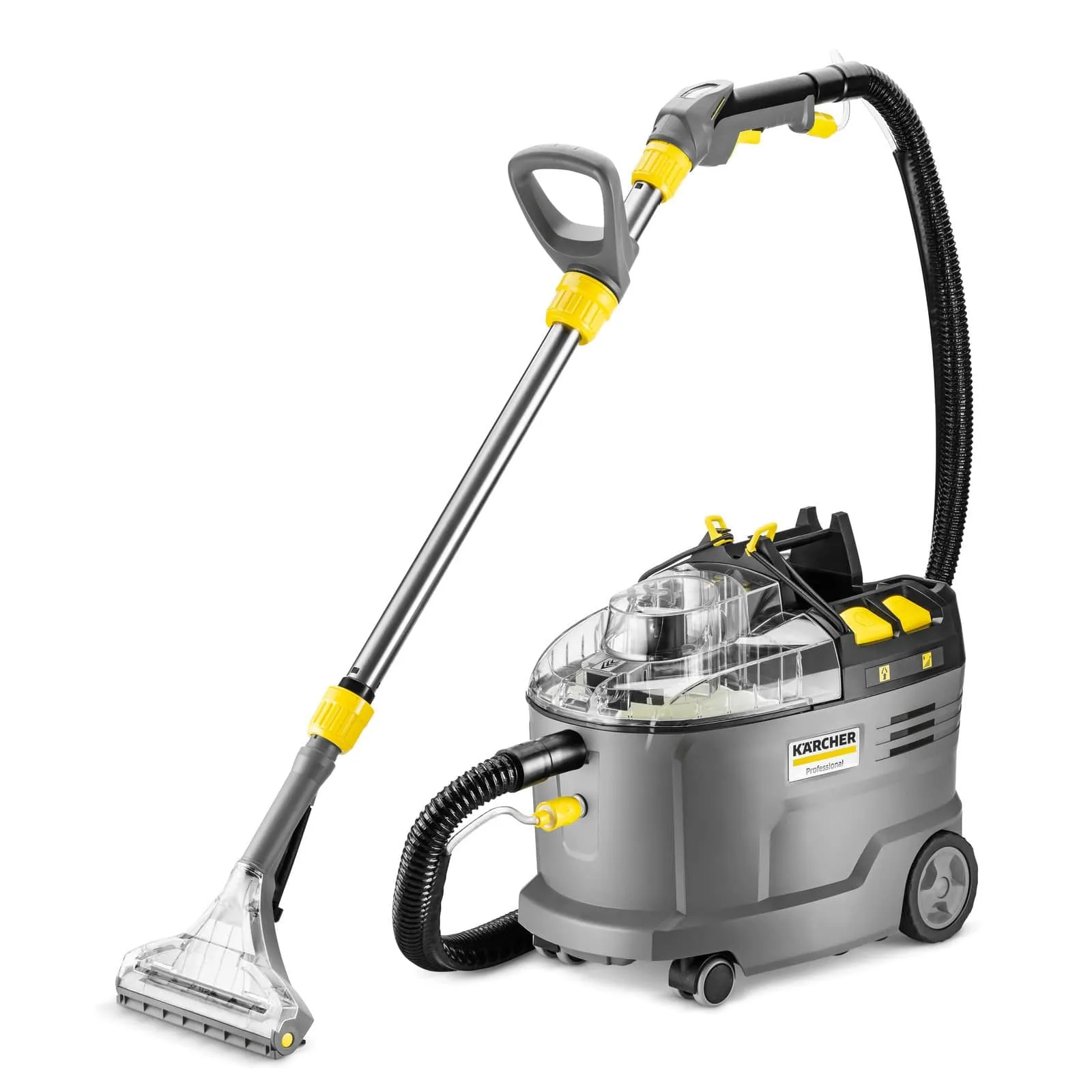

Unique worldwide, robust and cordless and flexible: our Puzzi 9/1 Bp battery-powered washing vacuum cleaner . As the only professional battery-operated spray extraction device on the market, this Puzzi impresses with outstanding performance and maximum freedom of movement when cleaning upholstery and textile surfaces, for example in the hotel and catering industry, vehicle interiors or building cleaning. This Puzzi is extremely quiet, so that it can also be used in public traffic, and can be easily transported with just one hand thanks to the ergonomic carrying handle. For the best results in deep cleaning, the cleaning solution is sprayed deep into the textile fibers under pressure and vacuumed away together with the loosened dirt. Supplied as standard: extra short upholstery nozzle, spray suction hose, 2-in-1 container for fresh and dirty water, integrated accessory storage and much more. Please note when ordering that for this device version, the powerful 36 V Kärcher Battery Power battery and the associated quick charger must be ordered separately.
